Diesel generator

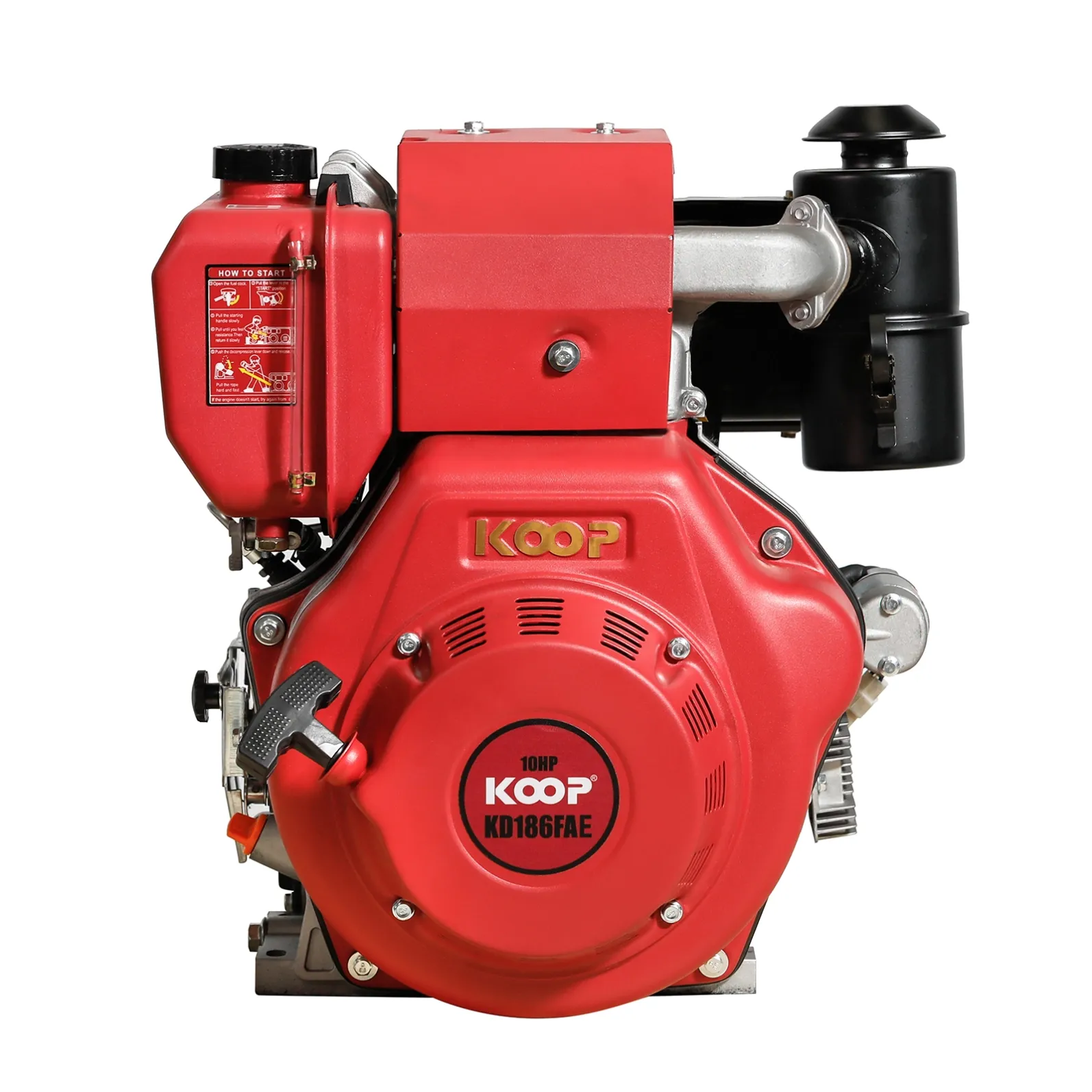

Kd186fa 5.8kw Vertical Air Cooled 1-Cylinder 4-Stroke Diesel Engine

KOOP KD186FA is a vertical 1-cylinder 4-stroke air-cooled direct injection diesel engine. It adopts recoil hand start as standard, with optional 12V electric start (KD186FAE). Featuring compact size, low fuel consumption and easy maintenance, the air-cooled design works reliably without a water tank.

View product
_J7A0064
Diesel generator

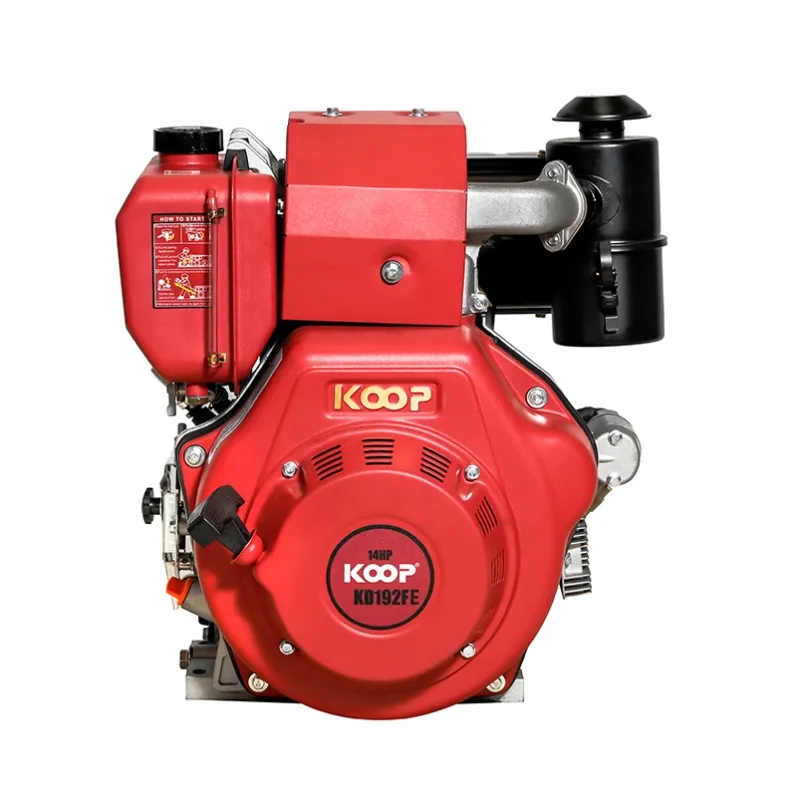

Kd192e 1-Cylinder 4-Stroke Air-Cooled Vertical Diesel Engine

KOOP KD192E is a vertical 1-cylinder 4-stroke air-cooled direct injection diesel engine with 12V electric start. It features compact structure, low fuel consumption, high torque and easy maintenance. Without water radiator, it adapts well to outdoor mobile working conditions. Widely used for diesel generators, water pumps, rotary tillers and light construction machinery. CE and emission certificates are available.

View product
_J7A0032
Diesel generator

Koop Kd186fa Single Cylinder Air Cooled Diesel Engine

The KOOP KD186FA is a vertical, single-cylinder, 4-stroke, air-cooled direct injection diesel engine. Compact, lightweight and durable, it features low fuel consumption, reliable starting performance and convenient daily maintenance. The air cooling design removes the water tank, making it adaptable to outdoor, mobile and water-shortage working environments. It supports recoil hand start (KD186FA) or optional 12V electric start (KD186FAE).

View product
_J7A0219
_J7A0219
_J7A0225
_J7A0226
_J7A0554
_J7A0556
_J7A0557
Diesel generator

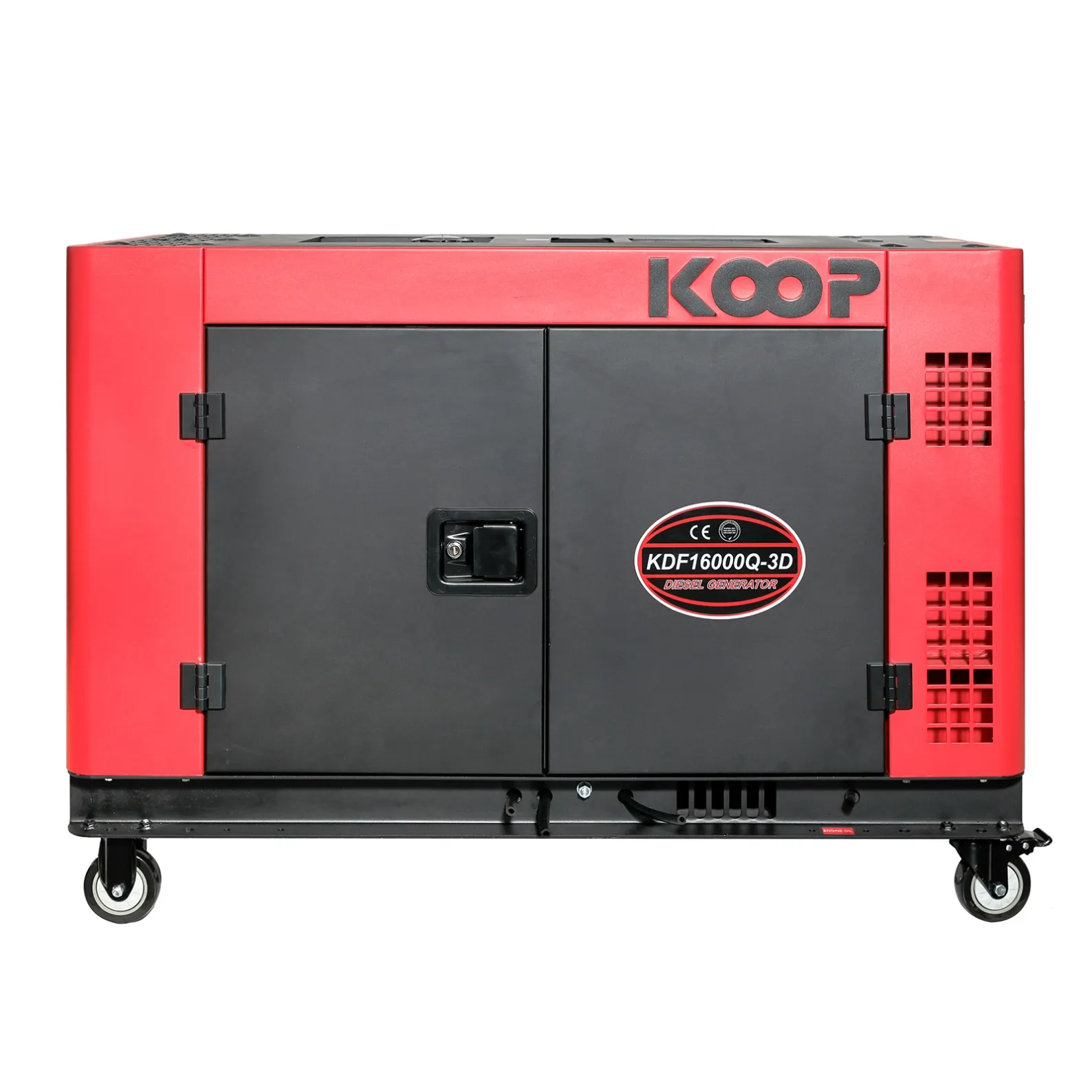

Koop Kdf16000q Two Cylinder Diesel Engine 15kVA 12kw Generator Emergency Power

KOOP KDF16000Q silent diesel generator set is equipped with KD292F 2-cylinder vertical 4-stroke air-cooled diesel engine. It features strong power, good fuel economy and easy maintenance. Adopted two-stage muffler and professional silent canopy for low noise operation. All copper alternator with AVR ensures stable voltage output. Standard with electric start, low oil pressure protection & overload protection.

Specifications

combustion system
Direct Injection Compression Ignition
Displacement
223cc
Broke*stroke
92×75mm
Displacement
997mL
Rated power
11kW /13.75kVA
starting system
Pure Electric Start
Fuel Tank capacity
26L

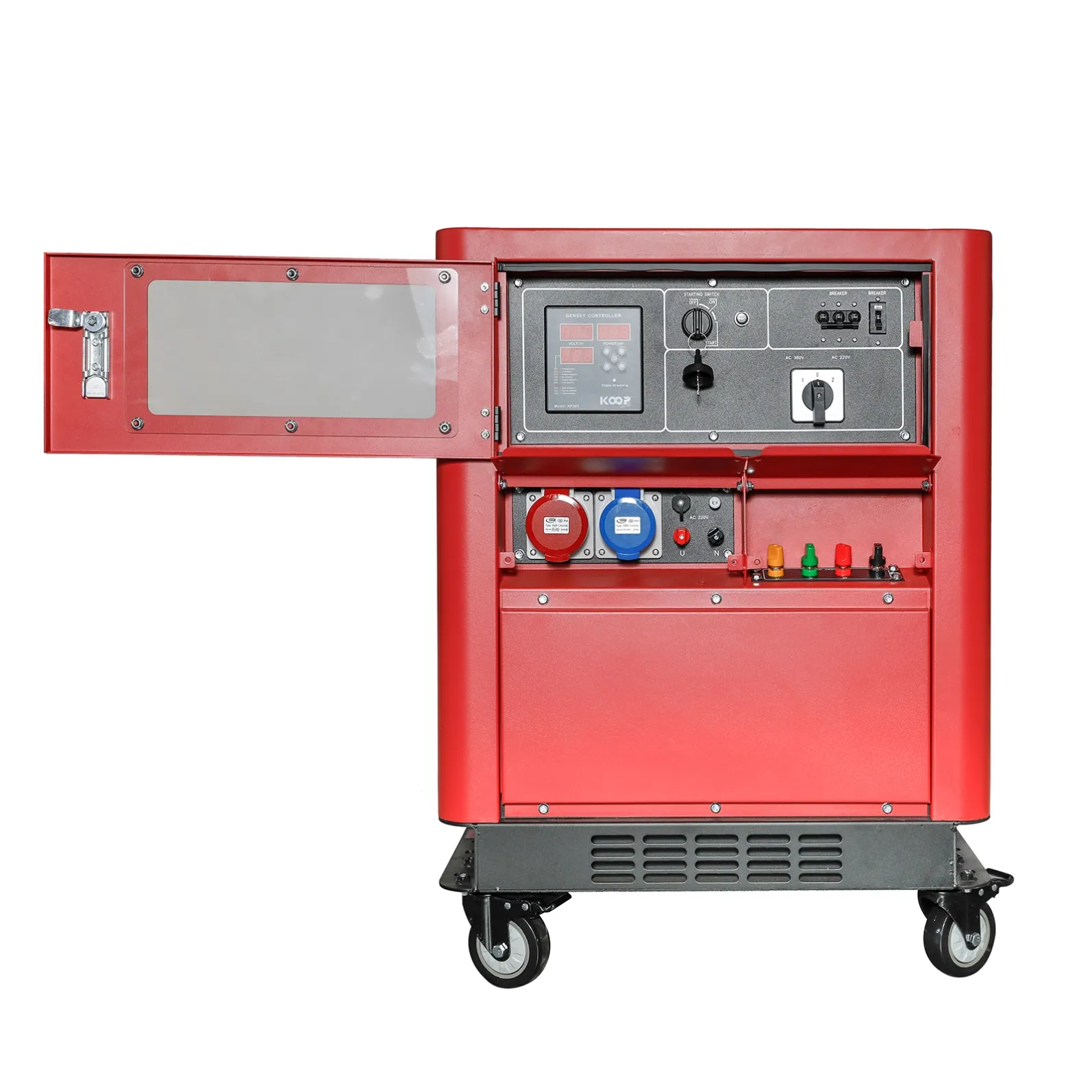

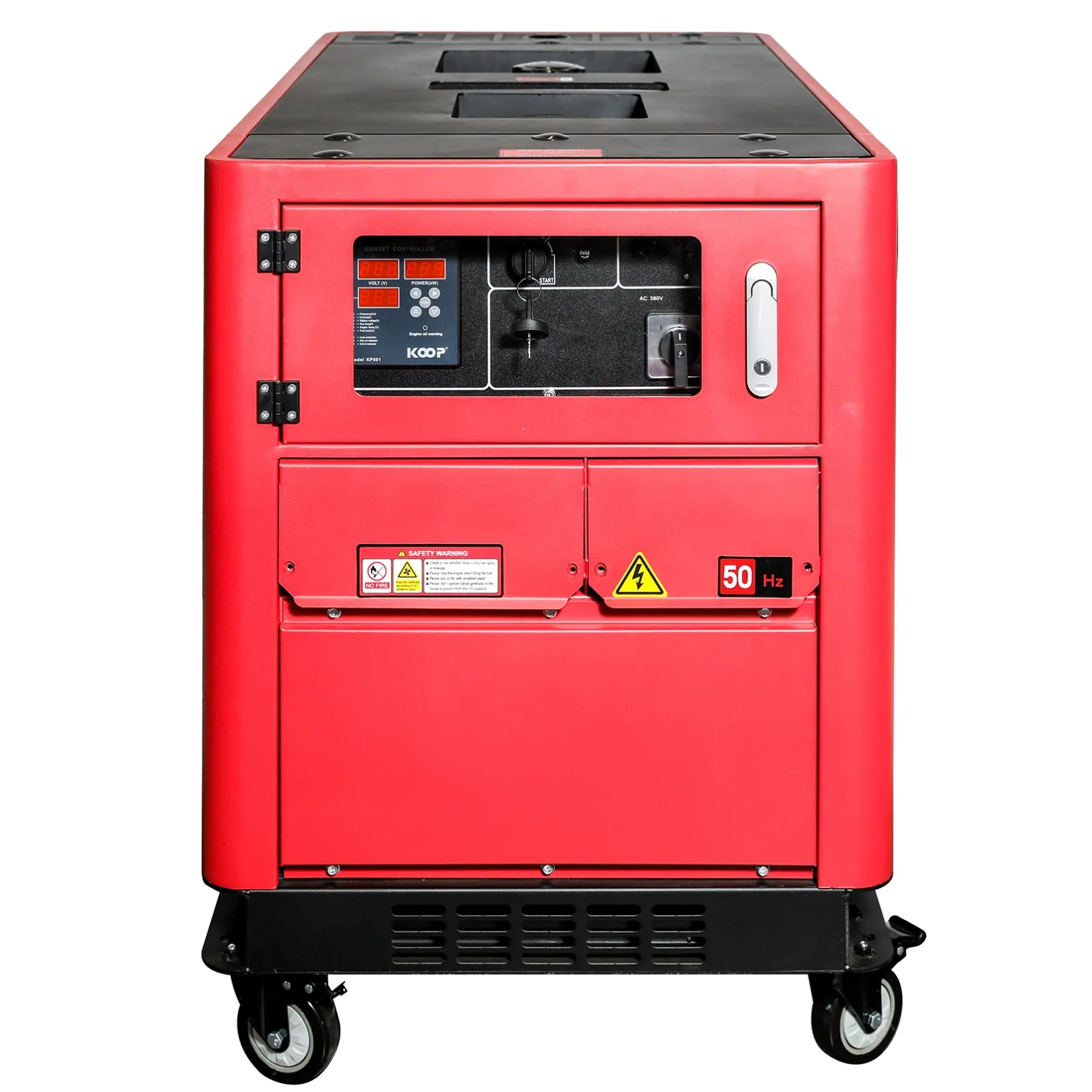

KOOP KDF16000Q Silent Diesel Generator Set

Product Introduction

The KOOP KDF16000Q silent air-cooled diesel generator set is powered by the KD292F vertical 2-cylinder 4-stroke air-cooled diesel engine. Adopting an air cooling structure without a water radiator, it works reliably in water-shortage, high & low temperature and other harsh field conditions. Fitted with a fully enclosed silent canopy, all-copper alternator and AVR automatic voltage regulator for stable power output. It comes with multiple standard safety protections and supports optional ATS automatic transfer switch, remote start & stop, smart digital panel and other configurations. Featuring low vibration, outstanding durability and easy maintenance, it is widely used for emergency backup power in commercial premises, construction sites, farms and outdoor projects.

KDF16000Q Generator Set Technical Data

Item
Specification
Set Model
KDF16000Q(-3)
Rated Frequency
50Hz / 60Hz optional
Output Voltage
Single phase 230V; Three phase 230/400V (customizable 110V, 415V etc.)
Rated Power
Single phase 11kVA; Three phase 13.75kVA
Max Power
Single phase 12kVA; Three phase 15kVA
Power Factor
Single phase 1.0; Three phase 0.8
Excitation Type
Brush self-excited with AVR automatic voltage regulation
Insulation Class
F / H
Fuel Tank Capacity
26 L
Noise Level @7m
≤75 dB(A)
Overall Dimension
1250 × 650 × 890 mm
Net Weight
320 kg
Standard Configuration
Electric start, low oil pressure protection, overload protection
Optional Accessories
ATS auto transfer switch, remote controller, smart digital panel, movable casters

Key Features

  1. 2-Cylinder Air-Cooled Power: Compared with single cylinder engines, it delivers lower vibration and stable continuous heavy-load performance. Air cooling design eliminates water leakage trouble and simplifies field maintenance.
  1. Silent Canopy: Equipped with two-stage mufflers, optimized air duct layout and high-density sound-absorbing cotton to reduce running noise, suitable for residential areas, shops and noise-restricted zones.
  1. Multi Safety Protection: Automatic shutdown under low oil pressure, overload, over-current and over-voltage conditions to protect the engine and electrical loads and extend service life.
  1. Stable Power Supply: All-copper winding alternator with AVR module ensures minor voltage fluctuation, compatible with office equipment and small precision machinery.
  1. Strong Expandability: Optional ATS enables automatic startup upon mains power failure; remote control and intelligent monitoring are available for unattended backup power supply.

Application Scenarios

Emergency backup power for shops and office buildings; power supply for municipal repair and outdoor construction; standby power for farms and processing factories; supporting power for field equipment; power supply for RVs and temporary camps.

Maintenance Guidelines

  1. Complete the first maintenance after 20–30 working hours, replace engine oil and oil filter.
  1. Clean the air filter regularly; shorten maintenance intervals in dusty environments.
  1. For cold winter conditions, install an optional preheater and use low-grade diesel.
  1. Before long-term storage, drain fuel, replace with new engine oil and implement anti-rust treatment.
