Oil Drum Trolley

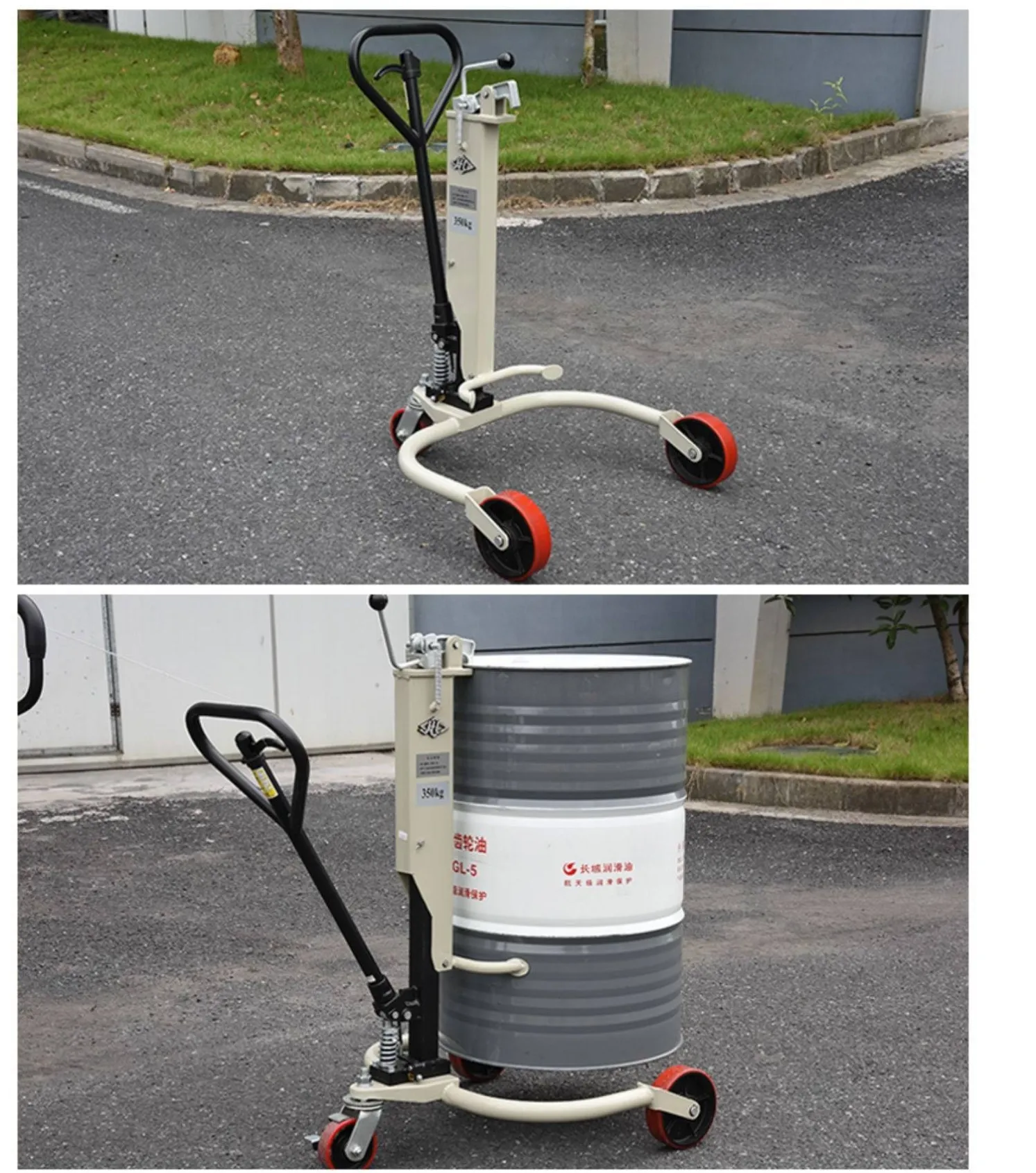

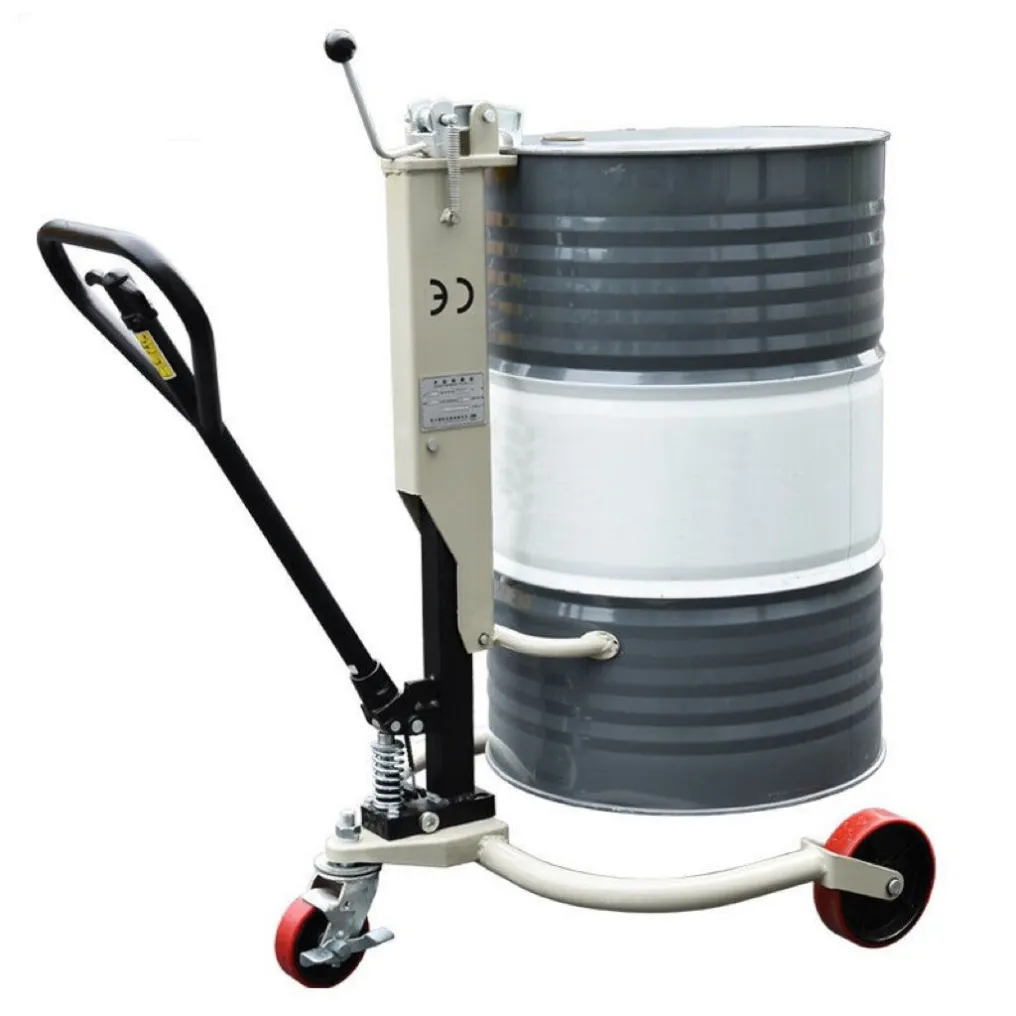

New 0.35ton Manual Hydraulic Oil Drum Truck

Our newly upgraded 0.35 ton manual hydraulic oil drum truck is designed to solve heavy barrel handling troubles, replacing labor-intensive manual carrying and greatly improving workshop operation efficiency. Fully manual hydraulic drive design requires no external power, realizing low-cost, low-maintenance drum transportation.

Specifications

Rated Load
350kg / 0.35 ton
Max Lifting Height
280mm
Adaptable Drum Size
Dia ≤600mm, Height ≤915mm
Front Wheel
PU 180×50mm
Rear Swivel Wheel
PU 125×38mm
New 0.35ton Manual Hydraulic Oil Drum Truck
This new 350kg manual hydraulic oil drum truck is an economical, labor-saving drum handling tool for warehouses, factories and chemical workshops诺力叉车. Powered by manual hydraulic pump without battery or power supply, single operator can finish lifting, moving and loading/unloading 200L standard steel & plastic oil drums effortlessly.

Core Features

  1. 0.35Ton Rated Load Capacity Max loading weight 350kg, max lifting height 280mm, fits drums with diameter ≤600mm and height ≤915mm诺力叉车.

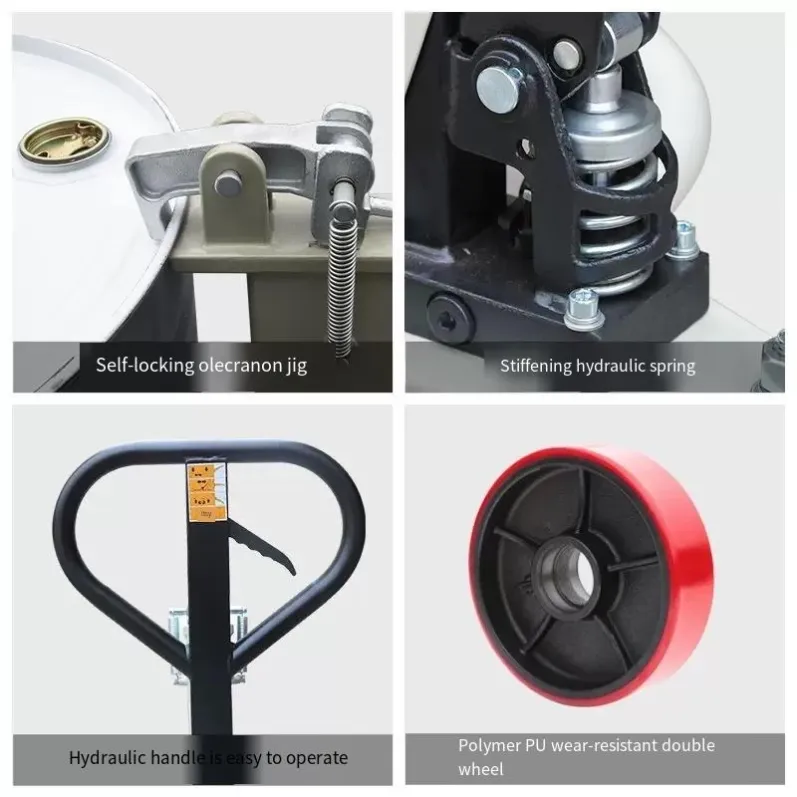

  1. Eagle Mouth Self-locking Clamp Heat-treated alloy steel jaw, auto-lock when lifting, tight grip without slipping, protects drum rims from scratch.
  1. Leak-proof Integrated Hydraulic Cylinder High-pressure sealed oil cylinder, smooth lifting & lowering, slow pressure release handle avoids sudden drop for safety.

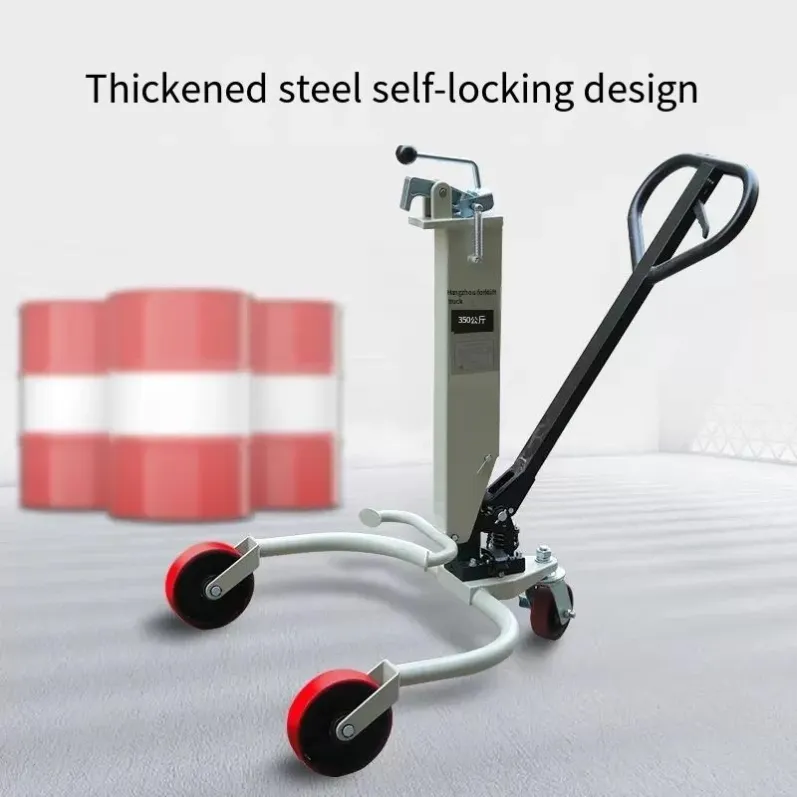

  1. Reinforced Thick Steel Frame Whole heavy-duty steel structure with anti-rust spray coating, strong bearing & long service life.

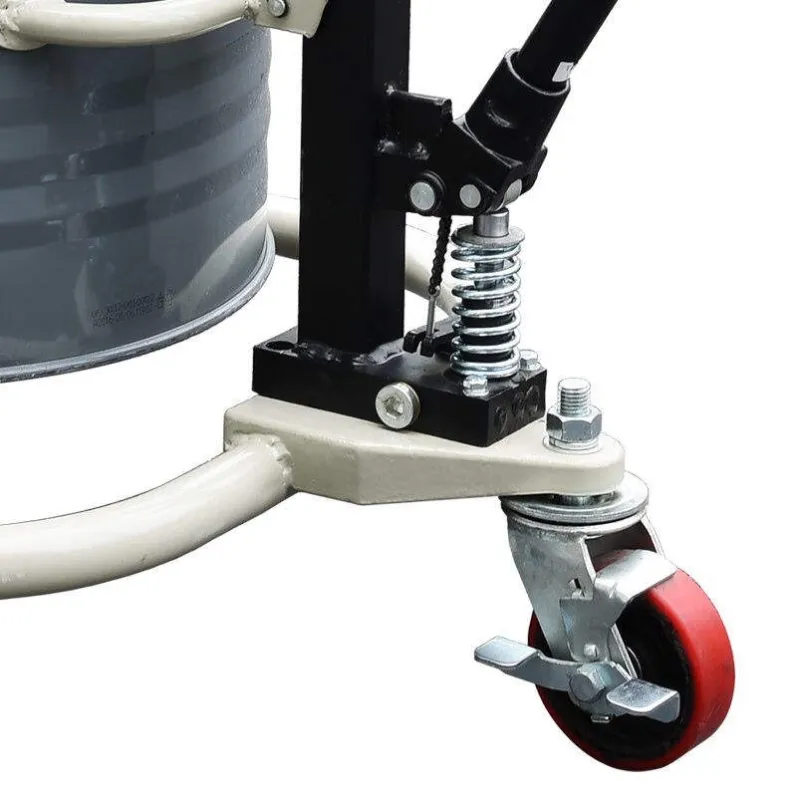

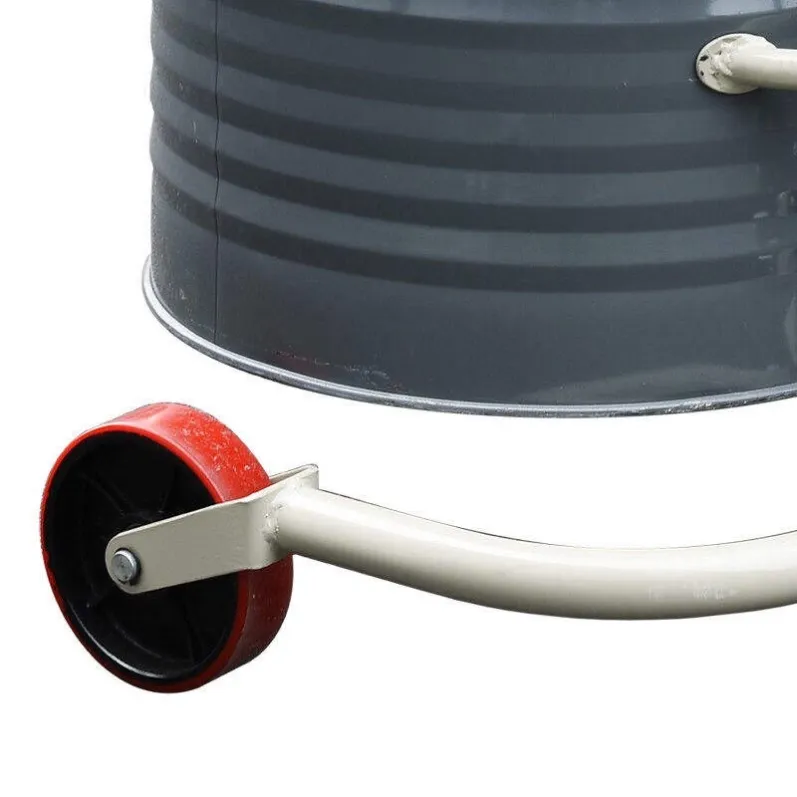

  1. Flexible PU Silent Wheels 2 front load wheels + 1 rear swivel caster, flexible turning even in narrow warehouse aisles, mute & wear-resistant.
  1. Ergonomic Handlebars & Foot Pedal Curved labor-saving handle, foot pedal for quick lifting, one-hand pressure relief design for precise drum positioning.

Application

Perfect for transporting lubricant, paint, chemical liquid, edible oil barrels; widely used in machinery factories, chemical plants, food workshops, logistics warehouses, auto repair shops.

Standard Technical Specs

  • Rated Capacity: 350kg (0.35 ton)
  • Max Lifting Height: 280mm
  • Applicable Drum: 200L standard steel drum / plastic drum
  • Max Drum Diameter: 600mm
  • Net Weight: 42kg
  • Wheel Size: Front 180×50mm, Rear swivel wheel 125×38mm
  • Overall Dimension: 800×760×1250mm
  • Certification: CE
  •
Item
Parameter
Rated Load
350kg / 0.35 ton
Max Lifting Height
280mm
Adaptable Drum Size
Dia ≤600mm, Height ≤915mm
Front Wheel
PU 180×50mm
Rear Swivel Wheel
PU 125×38mm
Overall Size (L×W×H)
800×760×1250mm
Net Weight
42kg
Certification
CE Certified
