Diesel generator

Kd186fa 5.8kw Vertical Air Cooled 1-Cylinder 4-Stroke Diesel Engine

KOOP KD186FA is a vertical 1-cylinder 4-stroke air-cooled direct injection diesel engine. It adopts recoil hand start as standard, with optional 12V electric start (KD186FAE). Featuring compact size, low fuel consumption and easy maintenance, the air-cooled design works reliably without a water tank.

Specifications

Bore × Stroke
86*72
Piston Displacement
0.418
Startup Method
Electric Start
Rated Speed
3000 3600
Rated Power
5 . 8 6 . 6
Lube Oil Capacity
1.65
Overall Diemension (L*W*H)
41 7*441 *494

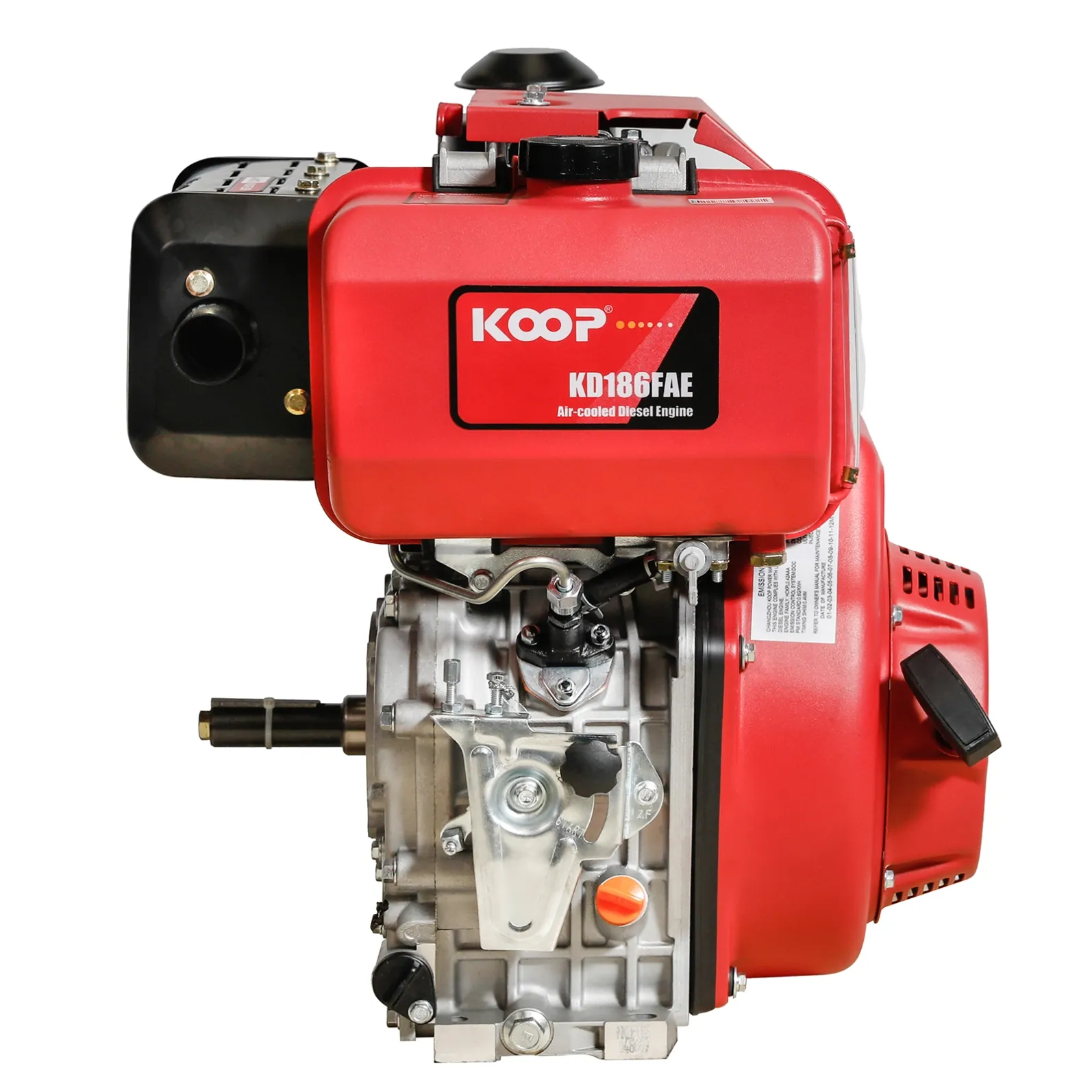

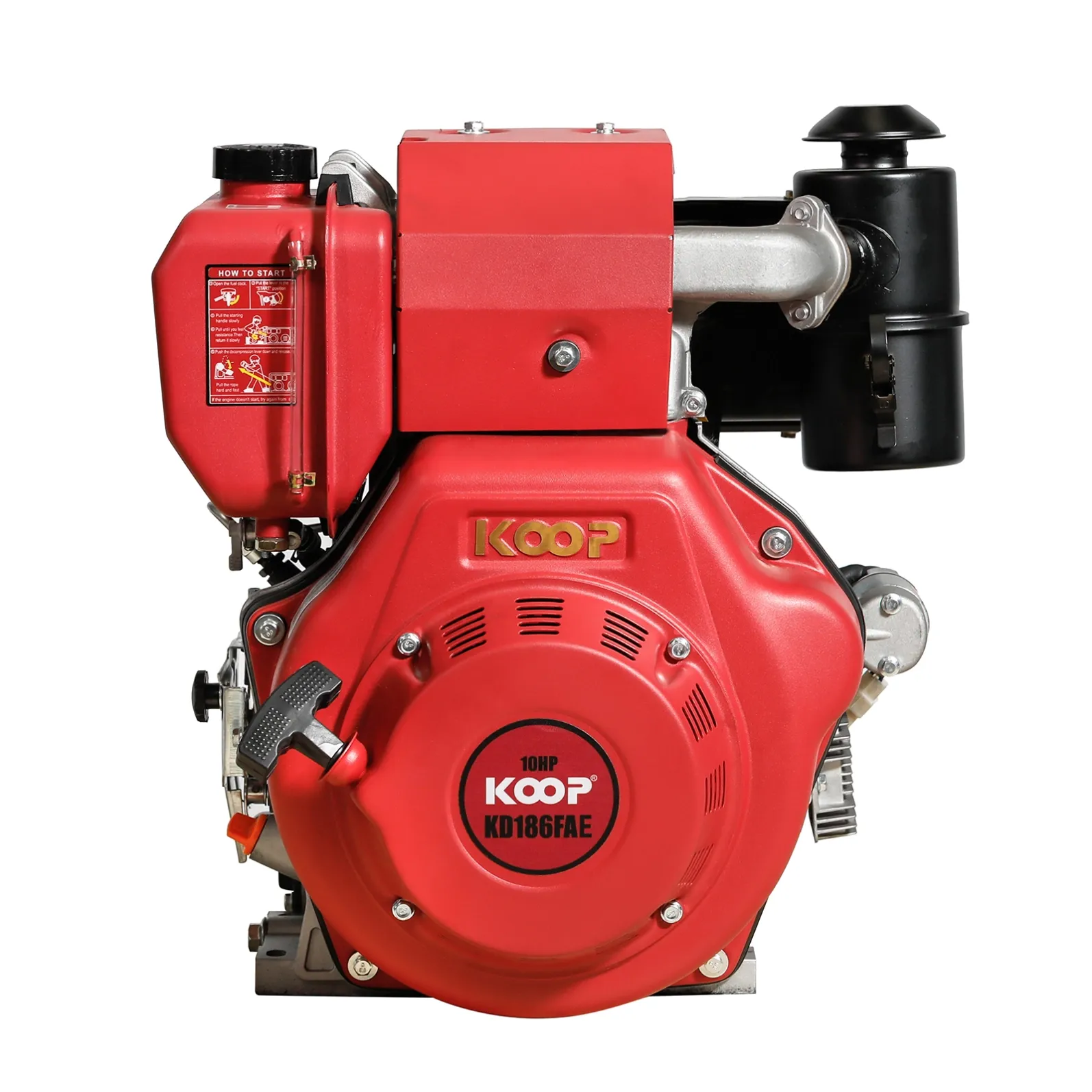

KOOP KD186FA Single Cylinder Air-Cooled Diesel Engine

Product Introduction

KOOP KD186FA is a vertical, single-cylinder, 4-stroke, air-cooled direct injection diesel engine. Standard with recoil hand start; 12V electric start version (KD186FAE) is optional. It features compact structure, low fuel consumption, stable power output and easy maintenance. The air cooling design removes the water radiator, making it suitable for mobile, outdoor and water-shortage working environments. Widely used as power source for portable diesel generators, water pumps, rotary tillers and light construction machinery. CE and ISO9001 certificates are available for export.

Technical Specifications

Item
Specification
Engine Model
KD186FA (KD186FAE: electric start)
Type
Single cylinder, vertical, 4-stroke, air-cooled, direct injection diesel engine
Bore × Stroke
86 mm × 72 mm
Displacement
0.418 L
Compression Ratio
19.5:1
Rated Speed
3000 rpm / 3600 rpm
Rated Power
5.8kW (7.9HP) @3000rpm; 6.6kW (9.0HP) @3600rpm
Starting Mode
Standard recoil hand start; optional 12V electric start
Fuel Tank Capacity
5.5 L
Engine Oil Capacity
1.65 L
Fuel Consumption
275 g/kWh @3000rpm; 280 g/kWh @3600rpm
Recommended Lubricant
SAE 10W-30, CD / CF grade diesel engine oil
Applicable Fuel
0# diesel (summer); -10# / -20# diesel (cold winter)
Overall Dimension
417 × 441 × 494 mm
Net Weight
48kg (hand start); 53kg (electric start)
Optional Parts
Air preheater for cold start, output flange, clutch assembly

Key Advantages

  1. Direct injection combustion: Good fuel atomization, low fuel consumption and high efficiency.
  1. Air-cooled design: No water tank, no water leakage fault, ideal for field mobile equipment.
  1. Compact & lightweight: Easy installation and equipment refitting.
  1. Simple maintenance: Standard spare parts, convenient filter replacement and daily service.
  1. Wide compatibility: Perfect power match for generators, water pumps and agricultural machinery.

Application

Portable diesel generators, self-priming water pumps, rotary tillers, road cutters, concrete vibrators, power sprayers and other agricultural, gardening and light construction equipment.

Certifications

CE, ISO9001, emission certificates available upon request.
