KOOP KD186FA is a vertical 1-cylinder 4-stroke air-cooled direct injection diesel engine. It adopts recoil hand start as standard, with optional 12V electric start (KD186FAE). Featuring compact size, low fuel consumption and easy maintenance, the air-cooled design works reliably without a water tank.
The KOOP KD186FA is a vertical, single-cylinder, 4-stroke, air-cooled direct injection diesel engine. Compact, lightweight and durable, it features low fuel consumption, reliable starting performance and convenient daily maintenance. The air cooling design removes the water tank, making it adaptable to outdoor, mobile and water-shortage working environments. It supports recoil hand start (KD186FA) or optional 12V electric start (KD186FAE).
KOOP KDF16000Q silent diesel generator set is equipped with KD292F 2-cylinder vertical 4-stroke air-cooled diesel engine. It features strong power, good fuel economy and easy maintenance. Adopted two-stage muffler and professional silent canopy for low noise operation. All copper alternator with AVR ensures stable voltage output. Standard with electric start, low oil pressure protection & overload protection.

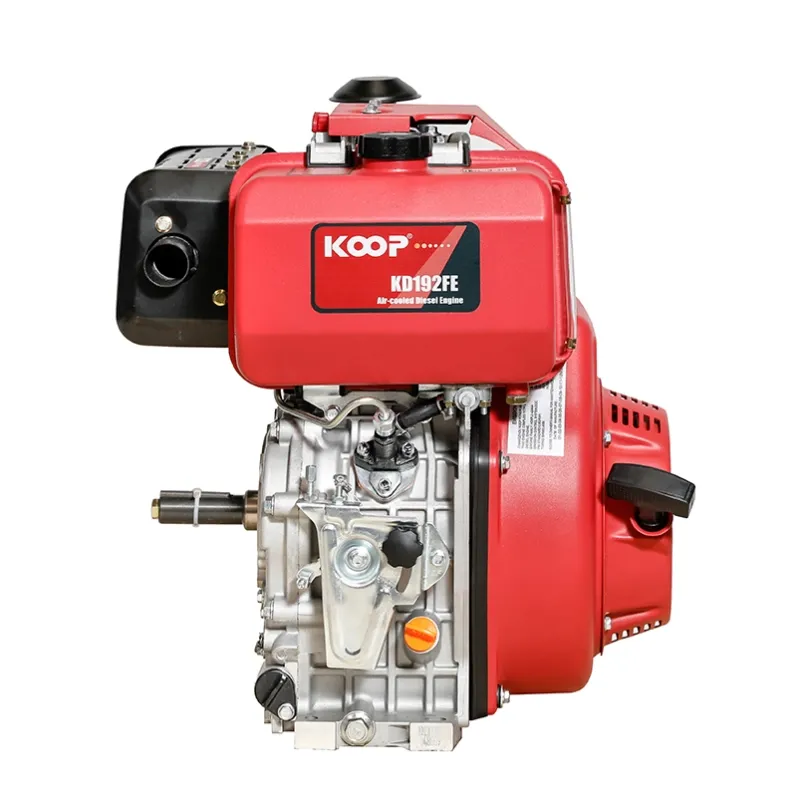

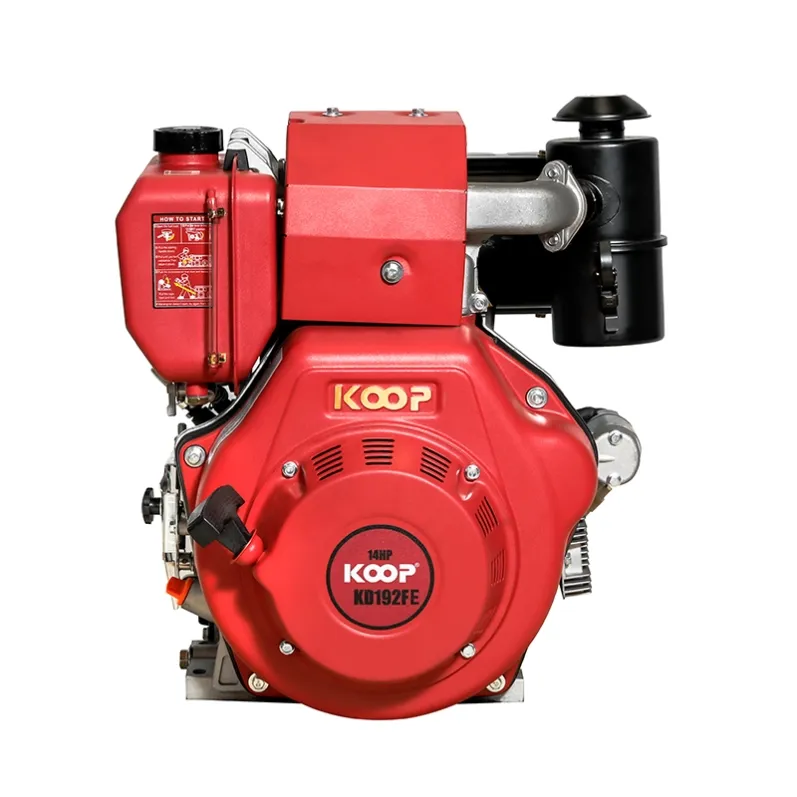

KOOP KD192E is a vertical 1-cylinder 4-stroke air-cooled direct injection diesel engine with 12V electric start. It features compact structure, low fuel consumption, high torque and easy maintenance. Without water radiator, it adapts well to outdoor mobile working conditions. Widely used for diesel generators, water pumps, rotary tillers and light construction machinery. CE and emission certificates are available.
Item | Specification |
|---|---|
Engine Model | KD192FE (KD192E, electric start) / KD192F (hand start) |
Type | 1-Cylinder, vertical, 4-stroke, air-cooled, direct injection diesel engine |
Bore × Stroke | 92 mm × 75 mm |
Displacement | 0.499 L (499 cc) |
Compression Ratio | 19.5:1 |
Rated Speed | 3000 rpm / 3600 rpm |
Rated Power | 7.6kW (10.3HP) @3000rpm; 8.6kW (11.7HP) @3600rpm |
Starting Mode | 12V electric start (KD192FE); optional recoil hand start (KD192F) |
Fuel Tank Capacity | 5.5 L |
Engine Oil Capacity | 1.65 L |
Fuel Consumption | 275 g/kWh @3000rpm; 280 g/kWh @3600rpm |
Recommended Lubricant | SAE10W-30, CD / CF grade or above diesel engine oil |
Applicable Fuel | 0# diesel (summer); -10# / -20# diesel (cold winter) |
Overall Dimension | 417 × 441 × 494 mm |
Net Weight | 50kg (hand start KD192F); 55kg (electric start KD192FE) |
Optional Accessories | Air preheater for cold start, different output flange, clutch assembly |
